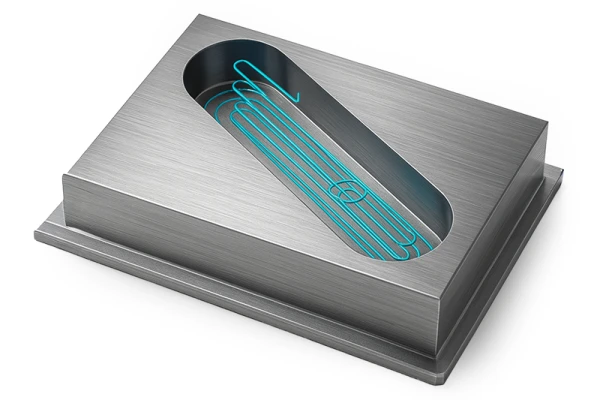

Mastercam Mill 2D Slot Milling
Mastercam's Slot Milling operation is specifically designed for machining slot-shaped features. This operation enables both roughing and finishing toolpaths to be performed in the same process, improving machining efficiency and quality.
Slot Milling provides a versatile method suitable for both simple and complex slot geometries. By combining roughing and finishing, this operation reduces programming time and simplifies the machining process. Mastercam's slot milling toolpaths can be optimized to match the slot geometry, ensuring consistent material removal and a high-quality surface finish.
Roughing and Finishing
- Roughing: The first stage, in which material is removed quickly and efficiently. Roughing toolpaths are designed to maximize material removal while minimizing tool wear.
- Finishing: After the roughing stage, the finishing toolpath produces a precise surface finish and completes the slot geometry. This stage ensures that the final result meets all accuracy and quality requirements.
Applications
- Simple Slots: Suitable for milling conventional, straight slots.
- Complex Geometries: Ideal for complex slot shapes that require precision and a high-quality finish.
- Efficient Machining: Enables both roughing and finishing stages in a single operation, saving time and improving efficiency.
Benefits
- Efficiency: Combines roughing and finishing, reducing the number of operation stages and saving time.
- High Quality: Enables precise, high-quality surfaces during the finishing stage.
- Versatility: Suitable for a wide range of slot shapes and geometries.
- Cost Savings: Reduces programming and machining time, resulting in cost savings.
Tips
- Tool Selection: Make sure you select the right tools for the roughing and finishing stages to achieve optimal results.
- Adjusting Machining Parameters: Carefully adjust both roughing and finishing parameters to achieve the best surface finish and efficiency.
- Simulation: Use Mastercam's simulation features to verify that the toolpaths operate correctly and safely before actual machining.
Summary
Mastercam's Slot Milling operation is designed to provide an efficient and versatile solution for roughing and finishing slot-shaped features. By combining these two machining stages in a single process, this operation improves machining quality and reduces overall cycle time. Slot Milling delivers precision and a high-quality result, making it a reliable and efficient choice for a variety of machining needs.
