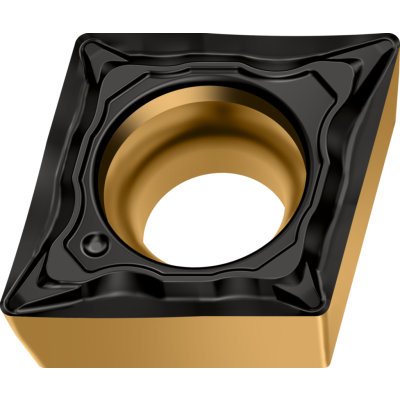

Walter Tools CCMT09T302-FM4 WMP20G
Turning Insert – Positive rhombic 80°

EAN-code: 4063467846570

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Clearance angle major

7 °

Depth of cut

a_p

0.1–1.0 mm

Number of cutting edges

CEDC

Feed rate

0.04–0.12 mm

Diameter of inscribed circle

9,525 mm

Cutting edge length

9,67 mm

Designation

CCMT09T302-FM4 WMP20G

Radius

0,2 mm

Insert thickness

3,97 mm
