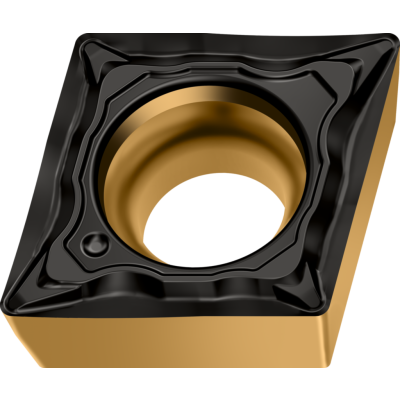

Walter Tools CCMT09T304-FM4 WMP30G
Turning Insert – Positive rhombic 80°

EAN-code: 4063467847744

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Clearance angle major

7 °

Depth of cut

a_p

0.1–1.5 mm

Number of cutting edges

CEDC

Feed rate

0.05–0.16 mm

Diameter of inscribed circle

9,525 mm

Cutting edge length

9,67 mm

Designation

CCMT09T304-FM4 WMP30G

Radius

0,4 mm

Insert thickness

3,97 mm
