Walter Tools
G5011-1616L-4T12GD26

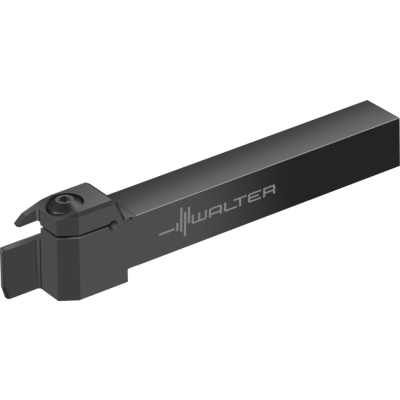

Shank tool – Radial grooving
EAN-code: 4063467566102
Screw clamping
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
16 mm
Maximum cutting depth
Tmax
12 mm
Indexable insert width
s
4
Shank height
h = h1
16 mm
Hand
HAND
L
Overall length
l1
135 mm
Maximum projection length
l4
35 mm
Tool designation
Designation
G5011-1616L-4T12GD26
Possible indexable inserts
Type
GD26-4 ..
Body width
s1
3,4 mm
Functional width
f1
14,3 mm
Weight
WT
0,263 kg
