Walter Tools

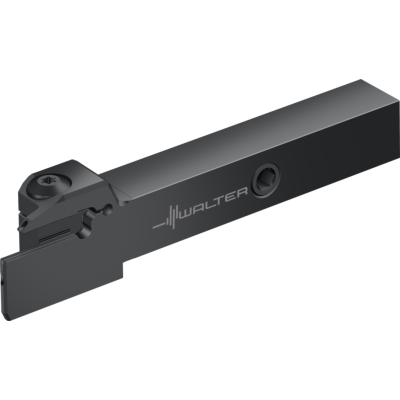

G5011-1212R-3T12GD26-P
Shank tool – Radial grooving
EAN-code: 4063467726049
Screw clamping
Precision cooling
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
12 mm
Maximum cutting depth
Tmax
12 mm
Coolant entry thread size
Th
M8X1
Indexable insert width
s
3
Shank height
h = h1
12 mm
Hand
HAND
R
Shank height
h4
4 mm
Overall length
l1
121,5 mm
Maximum projection length
l4
31,5 mm
Tool designation
Designation
G5011-1212R-3T12GD26-P
Possible indexable inserts
Type
GD26-3 ..
Body width
s1
2,4 mm
Functional width
f1
10,8 mm
Weight
WT
0,112 kg
