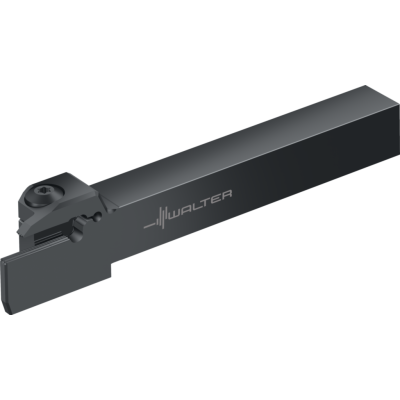

Walter Tools G5011-1212R-2.5T12GD26
Shank tool – Radial grooving

NEW 2025
EAN-code: 4063467726018
T-Ex-Grooving-Icon T-Ex-Parting-Icon T-Ex-Turning-Icon
T-WSP-GD-E-Icon T-WSP-GD-F-Icon T-WSP-GD26-Icon
Screw clamping
VAT 0% 137,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-G5011-12-16-R-GD-D-01
Enlarge
Description Symbol Value
Shank width
b
12 mm
Maximum cutting depth
Tmax
12 mm
Indexable insert width
s
2.5
Shank height
h = h1
12 mm
Hand
HAND
R
Shank height
h4
4 mm
Overall length
l1
119,5 mm
Maximum projection length
l4
29,5 mm
Tool designation
Designation
G5011-1212R-2.5T12GD26
Possible indexable inserts
Type
GD26-2.5 ..
Body width
s1
2,1 mm
Functional width
f1
10,9 mm
Weight
WT
0,13 kg
Compatible products
Products
Accessories
Assembly parts
GD-E-R-VG7-TTG-P-01
GD-E-R-VG7
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
GD-E-N-CF5-TTG-P-01
GD-E-N-CF5
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
GD-E-N-CE4-TTG-P-01
GD-E-N-CE4
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
