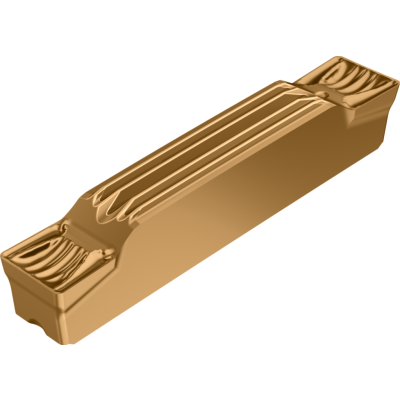

Walter Tools GD26-4E475N04-UF4 WSM33G
Grooving and recessing – cutting inserts

EAN-code: 4063467251053
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
GD-E-N-D-01
Enlarge
Description Symbol Value
Depth of cut
ap
0.3–3.0 mm
Number of cutting edges
CEDC
2
Cutting width
s
4,75 mm
Feed rate
f
0.10–0.35 mm
Hand
HAND
N
Cutting edge length
l
26,5 mm
Designation
GD26-4E475N04-UF4 WSM33G
Radius
R
0,4 mm
Tolerance cutting width
STol
±0.05
Length tolerance
lTol
±0.15
