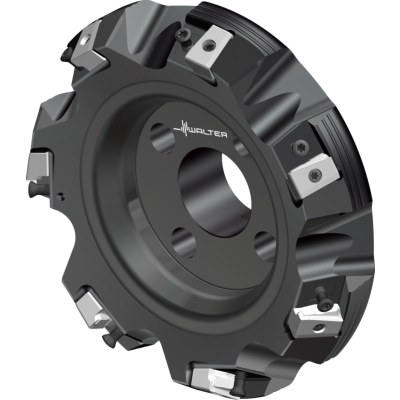

Walter Tools M3016-160-B40-07-16
Heavy Duty Face Mill

EAN-code: 0757524725
M-face-milling-roughing-Icon
M-Anstellw-60-Icon M-WSP-neg-Icon
4 cutting edges per indexable insert Tangential arrangement of indexable inserts
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-MI-M3016-B3-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
16 mm
Number of indexable inserts
No. of inserts
7
Cutting diameter
Dc
160 mm
Connection diameter
d1
40
Maximum cutting diameter
Da
178,6 mm
Lead angle
KAPR
60 °
Functional length
l4
63 mm
Tool designation
Designation
M3016-160-B40-07-16
Maximum ramping angle
RMPX
0 °
Maximum speed
RPMX
1100 r/min
Possible indexable inserts
Type
LNMX201012R
Weight
WT
6,38 kg
Number of teeth
Z
7
