MD780-05.0A4BC-WB10TS

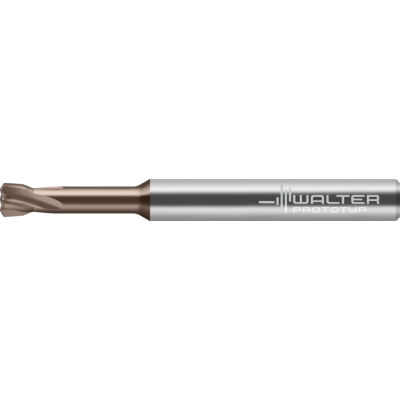

MD780-A-B-C-WB10TS-P-01 image

Walter Tools MD780-05.0A4BC-WB10TS
Solid carbide DrillMill

EAN-code: 4063467160676

M-helical-interpolation-Icon

M-ohneZentrums-Icon

M-Spiralw-15-Icon

Tr-48-63HRC-Icon

P

M

K

N

S

H

O

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

T-MR-MD780-A-B-C-D-01

Description Symbol Value

Cutting edge diameter

D_c

5 mm

Connection diameter

d₁

6

Neck diameter

d₂

3,83 mm

Usable length

l₃

19,35 mm

Overall length

l₁

57 mm

Maximum overhang

l₄

21 mm

Tool designation

Designation

MD780-05.0A4BC-WB10TS

Maximum speed

RPMX

80000 r/min

Number of teeth

Z

4
