Walter Tools MD780-10.0A4PC-WB10TS

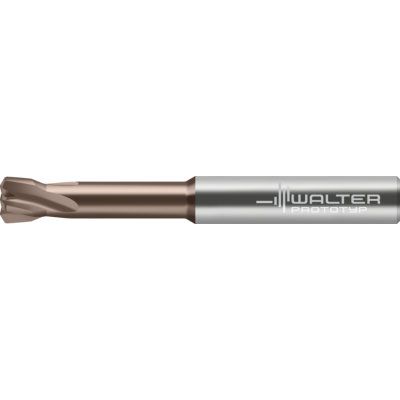

Solid carbide DrillMill

EAN-code: 4063467160706
M-helical-interpolation-Icon
D-M-Z4-Icon M-ohneZentrums-Icon M-Spiralw-15-Icon Tr-48-63HRC-Icon
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
T-MR-MD780-A-B-C-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
10 mm
Connection diameter
d1
10
Neck diameter
d2
7,65 mm
Usable length
l3
38,7 mm
Overall length
l1
85 mm
Maximum overhang
l4
45 mm
Tool designation
Designation
MD780-10.0A4PC-WB10TS
Maximum speed
RPMX
80000 r/min
Number of teeth
Z
4
