Walter Tools

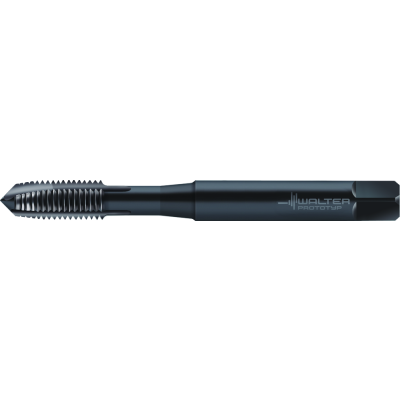

TD217-EGM2.5-C0-WY80FC
HSS-E machine taps
EAN-code: 4063466211249
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
3,5
Functional length
l1
56 mm
Driving square length
l9
6 mm
Usable length
l3
18 mm
Number of grooves
N
2
Tool designation
Designation
TD217-EGM2.5-C0-WY80FC
Premachined hole diameter
PHD
2,65 mm
Tap chamfer length
TCL
2,03 mm
Thread size
DN-P
EGM 2.5
Thread length
Lc
9 mm
Thread pitch
P
0,45 mm
Clamping width
2,7 mm
