Walter Tools

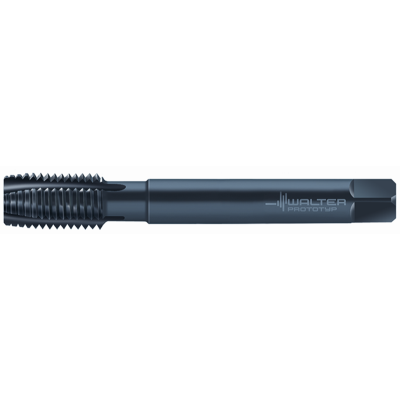

TD217-EGM12-L0-WY80FC
HSS-E machine taps
EAN-code: 4063466208065
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

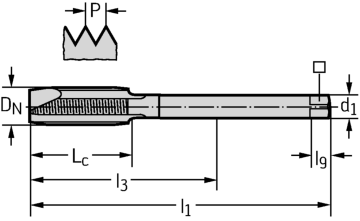

Technical details
Description
Symbol
Value
Connection diameter
d1
11
Functional length
l1
110 mm
Driving square length
l9
12 mm
Usable length
l3
81 mm
Number of grooves
N
4
Tool designation
Designation
TD217-EGM12-L0-WY80FC
Premachined hole diameter
PHD
12,5 mm
Tap chamfer length
TCL
7,88 mm
Thread size
DN-P
EGM 12
Thread length
Lc
25 mm
Thread pitch
P
1,75 mm
Clamping width
9 mm
