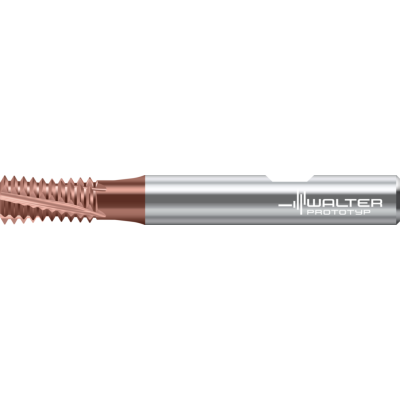

Walter Tools TD610-M20-W0C-WB10TU
Solid carbide thread milling cutters

EAN-code: 4063467366702
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
M-48HRC-Icon Recon-Icon Tr-1-5xDN-Icon-inch Tr-1-5xDN-Icon Tr-Drallw-Fraesen-15-V2-Icon
Universal thread milling cutters
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-TR-TD610-M-W0C-D-01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
30 mm
Cutting edge diameter
Dc
16,4 mm
Connection diameter
d1
18
Thread size
DN
M 20
Usable length
l3
36,23 mm
Overall length
l1
94 mm
Functional length
l4
46 mm
Tool designation
Designation
TD610-M20-W0C-WB10TU
Thread pitch
P
2,5 mm
Number of teeth
Z
6
