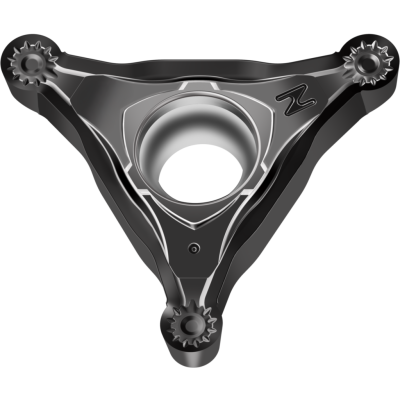

Walter Tools WL25-RCG0525N-MN2 WNN10
Indexable inserts copy turning system

EAN-code: 4063467403568

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

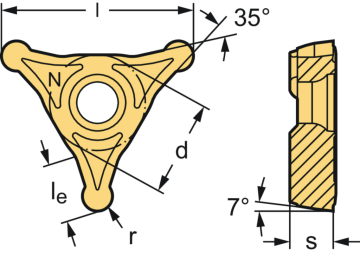

Description Symbol Value

Depth of cut

a_p

0.5–3.0 mm

Number of cutting edges

CEDC

Feed rate

0.25–0.50 mm

Diameter of inscribed circle

12,7 mm

Cutting edge length

25 mm

Cutting edge effective length

l_e

6,8 mm

Designation

WL25-RCG0525N-MN2 WNN10

Radius

2,5 mm

Insert thickness

4,76 mm
