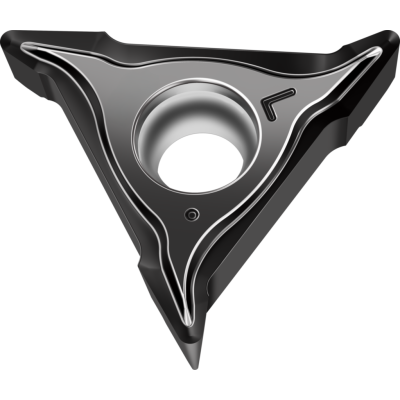

Walter Tools WL17-VCG0502L-FM2 WSM01
Indexable inserts copy turning system

EAN-code: 4063467402394

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Depth of cut

a_p

0.2–2.0 mm

Cutting edge effective length

l_e1

3 mm

Number of cutting edges

CEDC

Feed rate

0.05–0.12 mm

Diameter of inscribed circle

8,5 mm

Cutting edge length

17 mm

Cutting edge effective length

l_e

4,3 mm

Designation

WL17-VCG0502L-FM2 WSM01

Radius

0,2 mm

Insert thickness

3,18 mm
