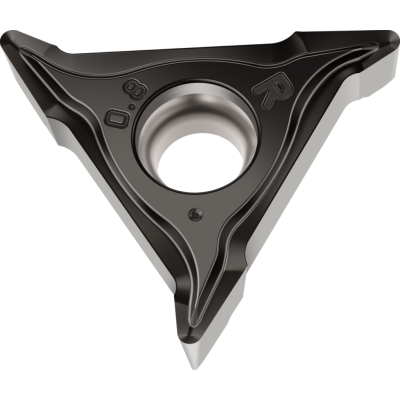

Walter Tools WL17-VCG0504R-FM2 WSM20S
Indexable inserts copy turning system

EAN-code: 4063467403506

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Depth of cut

a_p

0.2–2.5 mm

Cutting edge effective length

l_e1

3,1 mm

Number of cutting edges

CEDC

Feed rate

0.08–0.25 mm

Diameter of inscribed circle

8,5 mm

Cutting edge length

17 mm

Cutting edge effective length

l_e

4,6 mm

Designation

WL17-VCG0504R-FM2 WSM20S

Radius

0,4 mm

Insert thickness

3,18 mm
