Walter Tools AK155.8.C6.025.22

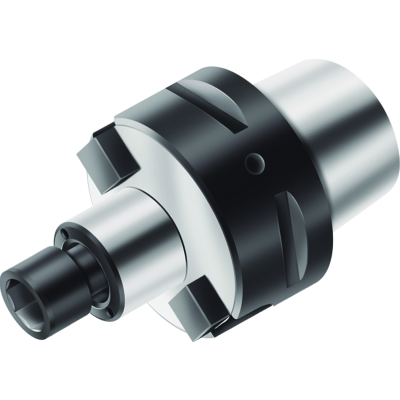

Shell mill adaptor

EAN-code: 0442021968

For milling tools with parallel bore according to DIN 138

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

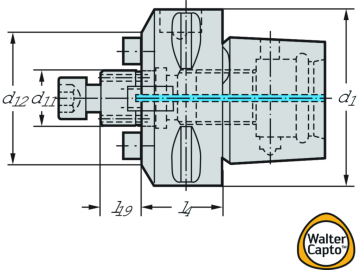

Description Symbol Value

Body diameter

d₁₂

48 mm

Connection diameter

d₁₁

22 mm

Functional length

l₁₉

19 mm

Functional length

l₄

25 mm

Tool designation

Designation

AK155.8.C6.025.22

Maximum speed

RPMX

20000 r/min

Weight

0,91 kg

Connection size code

d₁
