AB001-C

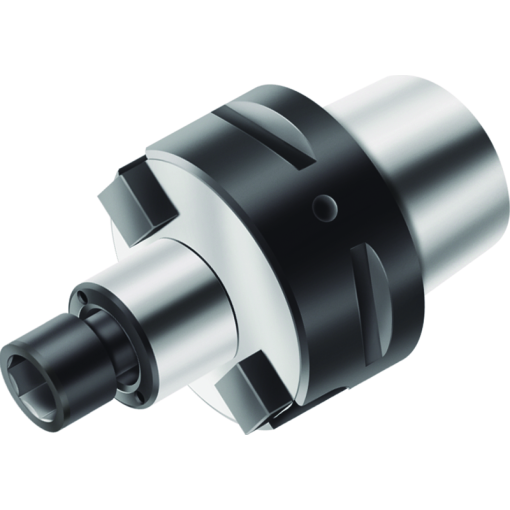

W-A-AK155-CAPTO-P-01 image

Walter Tools AB001-C
Shell mill adaptor

For milling tools with parallel bore according to DIN 138

d₁₂ mm

d₁₁ mm

l₁₉ mm

l₄ mm
AK155.8.C4.020.16

d₁₂ mm
38

d₁₁ mm
16

l₁₉ mm
17

l₄ mm
20

Checking availability

Order
AK155.8.C5.025.16

d₁₂ mm
38

d₁₁ mm
16

l₁₉ mm
17

l₄ mm
25

Checking availability

Order
AK155.8.C5.025.22

d₁₂ mm
48

d₁₁ mm
22

l₁₉ mm
19

l₄ mm
25

Checking availability

Order
AK155.8.C5.030.27

d₁₂ mm
60

d₁₁ mm
27

l₁₉ mm
21

l₄ mm
30

Checking availability

Order
AK155.8.C6.025.22

d₁₂ mm
48

d₁₁ mm
22

l₁₉ mm
19

l₄ mm
25

Checking availability

Order
AK155.8.C6.025.27

d₁₂ mm
60

d₁₁ mm
27

l₁₉ mm
21

l₄ mm
25

Checking availability

Order
AK155.8.C6.030.16

d₁₂ mm
38

d₁₁ mm
16

l₁₉ mm
17

l₄ mm
30

Checking availability

Order
AK155.8.C6.035.32

d₁₂ mm
78

d₁₁ mm
32

l₁₉ mm
24

l₄ mm
35

Checking availability

Order
