Walter Tools

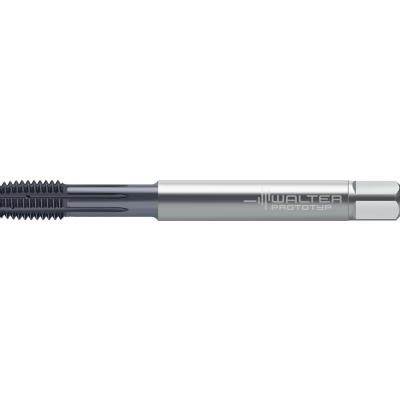

TC470-M10-C2-WG20EL
Solid carbide machine thread formers
EAN-code: 4042446302689
For long-chipping materials
P
M
K
N
S
H
O
VAT 0%
702,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

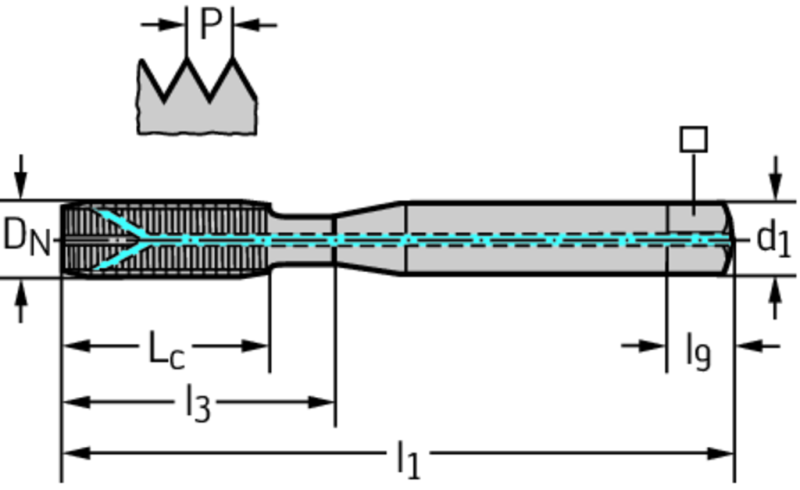

Technical details
Description
Symbol
Value
Connection diameter
d1
10
Functional length
l1
100 mm
Driving square length
l9
11 mm
Usable length
l3
39 mm
Number of grooves
N
7
Tool designation
Designation
TC470-M10-C2-WG20EL
Thread size
DN
M 10
Thread length
Lc
15 mm
Thread pitch
P
1,5 mm
Clamping width
Range
8 mm
