Duemmel
SXX.ISO60.02/AL41F

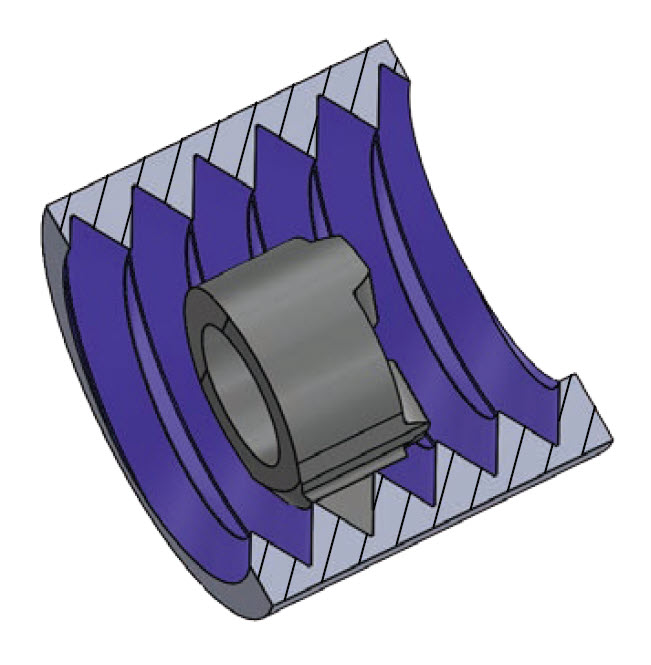

Minicut-kierresorvausterä – täysprofiili, ISO-metrinen 60°
ISO-metrinen 60° täysprofiili kierresorvausterä
TIALN -pinnoitteella - Yleiskäyttöinen, kestää hyvin korkeita lämpötiloja ja kovuutta
Sopiva myös ei-rautametalleille.
Kuvassa oikeakätinen terä.
P
M
K
N
S
H
O
-
b mmf mmD min mmP mm
-
LS09.0205.02/AL41F
D min mm9,0f mm5,5b mm0,06P mm0,519,55 €
-
LS09.0510.02/AL41F
D min mm9,0f mm5,5b mm0,12P mm119,55 €
-
LS09.0815.02/AL41F
D min mm9,0f mm5,5b mm0,18P mm1,519,55 €
-
LS09.0917.02/AL41F
D min mm9,0f mm5,5b mm0,2P mm1,7519,55 €
-
LS09.1020.02/AL41F
D min mm9,0f mm5,5b mm0,25P mm219,55 €
-
LS09.1325.02/AL41F
D min mm9,0f mm5,5b mm0,31P mm2,519,55 €
-
LS09.1630.02/AL41F
D min mm9,0f mm5,5b mm0,37P mm319,55 €
-
LS11.0510.02/AL41F
D min mm11,0f mm6,7b mm0,12P mm119,55 €
-
LS11.0815.02/AL41F
D min mm11,0f mm6,7b mm0,18P mm1,519,55 €
-
LS11.1020.02/AL41F
D min mm11,0f mm6,7b mm0,25P mm219,55 €
-
LS11.1325.02/AL41F
D min mm11,0f mm6,7b mm0,31P mm2,519,55 €
-
LS11.1630.02/AL41F
D min mm11,0f mm6,7b mm0,37P mm319,55 €
-
LS14.0205.02/AL41F
D min mm14,0f mm9,0b mm0,06P mm0,520,30 €
-
LS14.0510.02/AL41F
D min mm14,0f mm9,0b mm0,12P mm118,05 €
-
LS14.0815.02/AL41F
D min mm14,0f mm9,0b mm0,18P mm1,518,05 €
-
LS14.1020.02/AL41F
D min mm14,0f mm9,0b mm0,25P mm218,05 €
-
LS14.1325.02/AL41F
D min mm14,0f mm9,0b mm0,31P mm2,518,05 €
-
LS16.0510.02/AL41F
D min mm16,0f mm10,2b mm0,12P mm121,85 €
-
LS16.0815.02/AL41F
D min mm16,0f mm10,2b mm0,18P mm1,521,85 €
-
LS16.1020.02/AL41F
D min mm16,0f mm10,2b mm0,25P mm221,85 €
-
LS16.1325.02/AL41F
D min mm16,0f mm10,2b mm0,31P mm2,521,85 €
-
LS16.1630.02/AL41F
D min mm16,0f mm10,2b mm0,37P mm321,85 €
-
LS16.1835.02/AL41F
D min mm16,0f mm10,2b mm0,43P mm3,521,85 €
-
LS16.2140.02/AL41F
D min mm16,0f mm10,2b mm0,5P mm421,85 €
