Duemmel
SXX.TR.01/AL41F
Minicut-kierresorvausterä – osaprofiili, TR
Trapetsi osaprofiili kierresorvausterä
TIALN -pinnoitteella - Yleiskäyttöinen, kestää hyvin korkeita lämpötiloja ja kovuutta
Sopiva myös ei-rautametalleille.

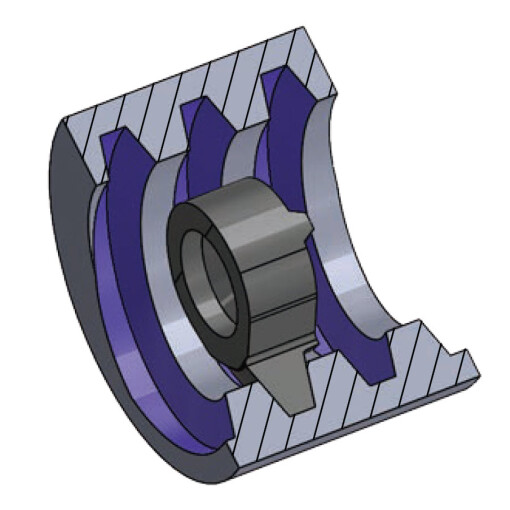

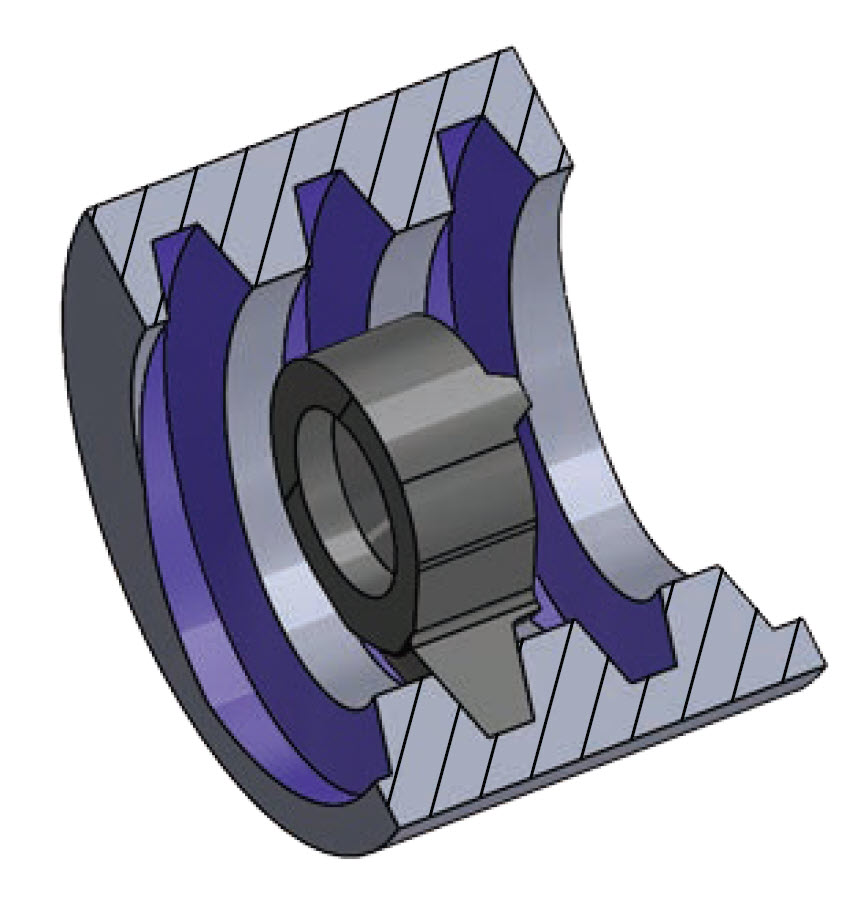

Kuvassa oikeakätinen terä.
P
M
K
N
S
H
O
-
b mmf mmD min mmP mm
-
LS09.1015.01/AL41F
f mm5,5b mm0,47P mm1,5D min mm9,019,10 €
-
LS09.1220.01/AL41F
f mm5,5b mm0,6P mm2D min mm9,019,10 €
-
LS09.1730.01/AL41F
f mm5,5b mm0,96P mm3D min mm9,019,10 €
-
LS09.2240.01/AL41F
f mm6,5b mm1,33P mm4D min mm10,019,10 €
-
LS11.1015.01/AL41F
f mm6,7b mm0,47P mm1,5D min mm11,019,10 €
-
LS11.1220.01/AL41F
f mm6,7b mm0,6P mm2D min mm11,019,10 €
-
LS11.1730.01/AL41F
f mm6,7b mm0,96P mm3D min mm11,019,10 €
-
LS11.2240.01/AL41F
f mm6,7b mm1,33P mm4D min mm11,019,10 €
-
LS14.1220.01/AL41F
f mm9,0b mm0,6P mm2D min mm14,019,65 €
-
LS14.1730.01/AL41F
f mm9,0b mm0,96P mm3D min mm14,019,65 €
-
LS14.2240.01/AL41F
f mm9,0b mm1,33P mm4D min mm14,019,65 €
-
LS14.2750.01/AL41F
f mm9,0b mm1,69P mm5D min mm14,019,65 €
-
LS16.1220.01/AL41F
f mm9,7b mm0,6P mm2D min mm16,021,70 €
-
LS16.1730.01/AL41F
f mm9,7b mm0,96P mm3D min mm16,021,70 €
-
LS16.2240.01/AL41F
f mm9,7b mm1,33P mm4D min mm16,021,70 €
-
LS16.2750.01/AL41F
f mm10,2b mm1,92P mm5D min mm16,021,70 €
-
RS09.1015.01/AL41F
f mm5,5b mm0,47P mm1,5D min mm9,019,10 €
-
RS09.1220.01/AL41F
f mm5,5b mm0,6P mm2D min mm9,019,10 €
-
RS09.1730.01/AL41F
f mm5,5b mm0,96P mm3D min mm9,019,10 €
-
RS09.2240.01/AL41F
f mm6,5b mm1,33P mm4D min mm10,019,10 €
-
RS11.1015.01/AL41F
f mm6,7b mm0,47P mm1,5D min mm11,019,10 €
-
RS11.1220.01/AL41F
f mm6,7b mm0,6P mm2D min mm11,019,10 €
-
RS11.1730.01/AL41F
f mm6,7b mm0,96P mm3D min mm11,019,10 €
-
RS11.2240.01/AL41F
f mm6,7b mm1,33P mm4D min mm11,019,10 €
