Walter Tools
243612-RP1

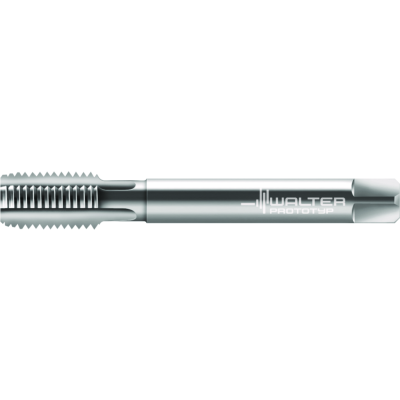

HSS-E machine taps
EAN-code: 4042446033309
For long- and short-chipping materials
P
M
K
N
S
H
O
VAT 0%
290,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Appendices

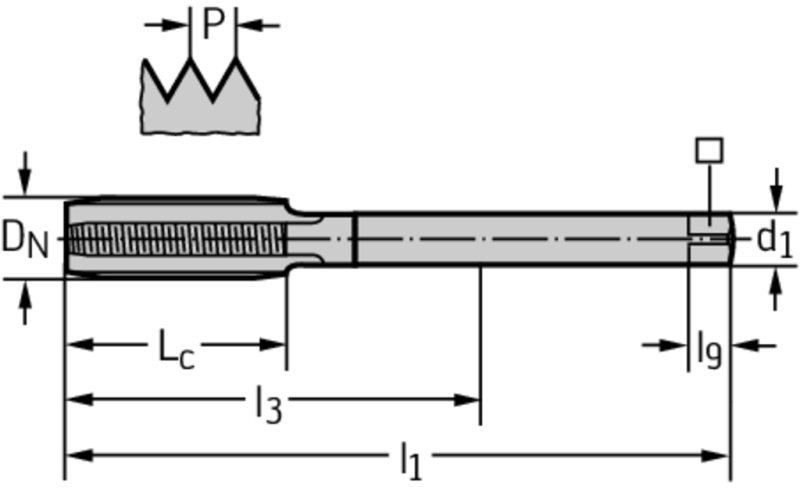

Technical details
Description
Symbol
Value
Connection diameter
d1
25
Functional length
l1
160 mm
Driving square length
l9
23 mm
Usable length
l3
93 mm
Number of grooves
N
4
Tool designation
Designation
243612
Thread size
DN
33,249
Thread size
DN-P
Rp 1"-11
Thread length
Lc
28 mm
Threads per inch
Gear per inch
11
Clamping width
Range
20 mm
Compatible products
Adaptors
