Walter Tools
25567-NPT1

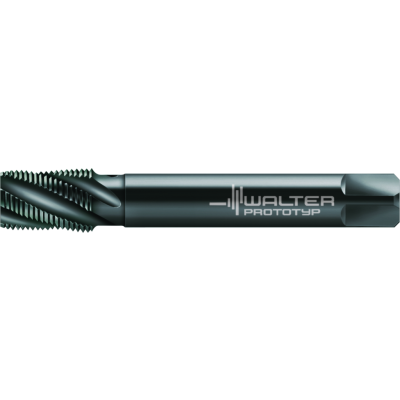

HSS-E machine taps
EAN-code: 4042446034580
For long-chipping materials
P
M
K
N
S
H
O
VAT 0%
457,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details
Description
Symbol
Value
Connection diameter
d1
28
Functional length
l1
150 mm
Driving square length
l9
22 mm
Number of grooves
N
5
Usable length
l3
81 mm
Tool designation
Designation
25567
Premachined hole diameter
PHD
29 mm
Tap chamfer length
TCL
5,52 mm
Nominal thread diameter
DN
32,914 mm
Thread size
DN-P
NPT 1"-11.5
Cutting edge length
Lc
31 mm
Threads per inch
11,5
Clamping width
22 mm
Compatible products
Adaptors
