Walter Tools

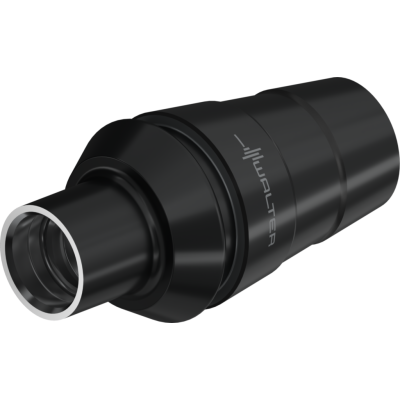

AB771-ER20-E10-008
ER Collets DIN 6499
EAN-code: 4063467969002
For ConeFit milling cutter heads
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

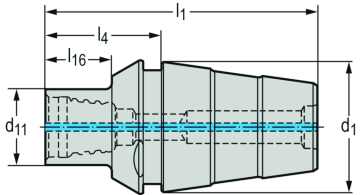

Technical details
Description
Symbol
Value
Connection size code
d1
ER20
Connection size code
d11
E10
Connection diameter
d1
21
Connection diameter
d11
9,6 mm
Body length
l16
7,2 mm
Overall length
l1
39,7 mm
Maximum projection length
l4
15,8 mm
Tool designation
Designation
AB771-ER20-E10-008
Weight
WT
0,08 kg
