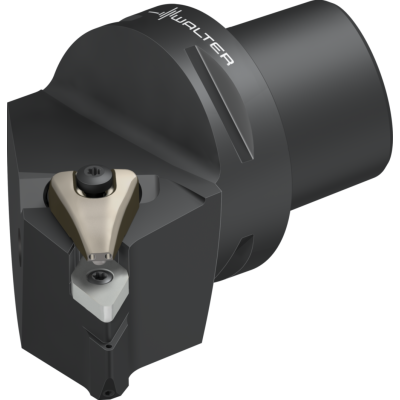

Walter Tools
C6-DDUNR-45065-15-P
Turning tools – Rigid clamping
EAN-code: 0838528967
Walter CaptoTM
Precision cooling
VAT 0%
539,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

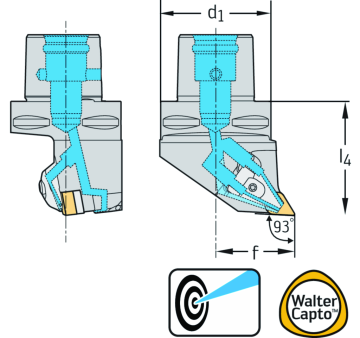

Technical details
Description
Symbol
Value
Coolant pressure
CP
150 bar
Connection size code
d1
C6
Minimum diameter
Dmin
500 mm
Minimum diameter
Dmin2
600 mm
Orthogonal rake angle
γ
-6,5 °
Hand
HAND
R
Lead angle
KAPR
93 °
Inclination angle
λs
-6 °
Functional length
l4
65 mm
Tool designation
Designation
C6-DDUNR-45065-15-P
Insert seat size
15
Possible indexable inserts
Type
DN .. 1506 ..
Functional width
f
45 mm
Weight
WT
1,358 kg
