Walter Tools F2010.B.315.Z18.13.R722M
Shoulder milling cutters

EAN-code: 0579900725
M-face-milling-finishing-Icon M-face-milling-roughing-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-neg-Icon
Adjustable runout 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0% 3745,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Appendices
Technical details

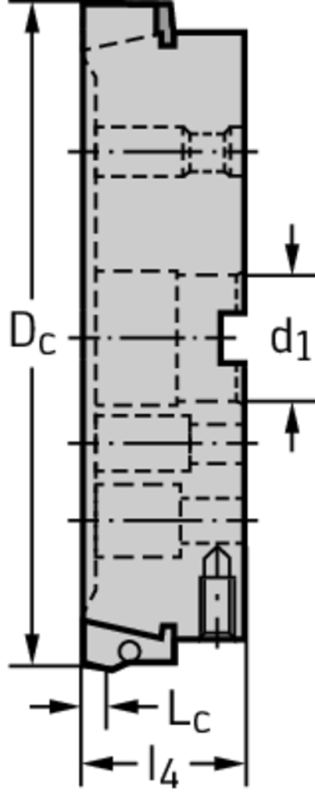

W MI F2010 B D 05
Enlarge
Description Symbol Value
Cutting edge length
Lc
13 mm
Number of indexable inserts - face
Number of WSP
18 EA
Cutting edge diameter
Dc
315 mm
Connection diameter
d1
60
Maximum projection length
l4
80 mm
Tool designation
Designation
F2010.B.315.Z18.13.R722M
Possible indexable inserts
Type
LNGX1307 .. R
Weight
26,21 kg
Number of teeth
Z
18
Compatible products
Products
Accessories
Assembly parts
W MI LNGX L88 CU P 01
LNGX-L88
Negative rhombic
Show variations
P
M
K
N
S
H
O
LNGX-L55-TTGPVD-P-01
LNGX-L55
Negative rhombic
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
imageComingSoon big en US
Z_RING
Rings
Show variations
W MI F2010 FR757M TTG P 01
KASF2010-90°
Cartridge for F2010
Show variations
