Walter Tools

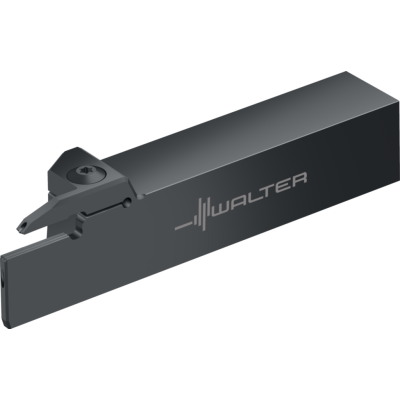

G5011-2020R-4T26GD26-P
Shank tool – Radial grooving
NEW 2025
EAN-code: 4063467565907
Screw clamping
Precision cooling
VAT 0%
247,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Shank width
b
20 mm
Maximum cutting depth
Tmax
26 mm
Coolant entry thread size
Th
G1/8"
Maximum cutting diameter
Dmax
120 mm
Indexable insert width
s
4
Shank height
h = h1
20 mm
Hand
HAND
R
Overall length
l1
130 mm
Maximum projection length
l4
45 mm
Tool designation
Designation
G5011-2020R-4T26GD26-P
Possible indexable inserts
Type
GD26-4 ..
Body width
s1
3,4 mm
Functional width
f1
18,3 mm
Weight
WT
0,305 kg
