Walter Tools M2331-050-H80F-04-15-MA
Ramping milling cutters

EAN-code: 0914614724
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-finishing-base-Icon M-shoulder-milling-rouhing-Icon
M-Anstellw-90-Icon M-WSP-pos-Icon
2 cutting edges per indexable insert For pocket machining
P
M
K
N
S
H
O
VAT 0% 1446,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details

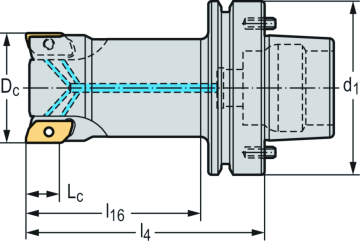

W-MI-M2331-H-D-01
Enlarge
Description Symbol Value
Cutting edge length
Lc
15 mm
Number of indexable inserts - face
Number of WSP
4 EA
Cutting edge diameter
Dc
50 mm
Connection diameter
d1
80
Usable length
l16
80 mm
Maximum projection length
l4
110 mm
Tool designation
Designation
M2331-050-H80F-04-15-MA
Possible indexable inserts
Type
ZD .. 15A4 ..
Weight
1,89 kg
Number of teeth
Z
4
Compatible products
Products
Accessories
Assembly parts
W MI ZDGT A K85 POLIERT P 01
ZDGT-A-K85
Positive rhombic
Show variations
P
M
K
N
S
H
O
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
