Walter Tools
M3024-160-B40-12-04
Heptagon face milling cutters
EAN-code: 0780395724
14 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
1569,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

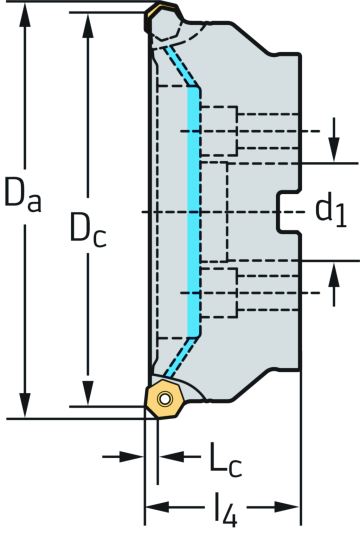

Technical details
Description
Symbol
Value
Cutting edge length
Lc
4 mm
Number of indexable inserts
No. of inserts
12
Cutting diameter
Dc
160 mm
Connection diameter
d1
40
Maximum cutting diameter
Da
169,8 mm
Lead angle
KAPR
45 °
Functional length
l4
63 mm
Tool designation
Designation
M3024-160-B40-12-04
Maximum ramping angle
RMPX
0 °
Maximum speed
RPMX
6100 r/min
Possible indexable inserts
Type
XN . U0705 ..; XNGX0705ANN
Weight
WT
5,64 kg
Number of teeth
Z
12
