Walter Tools

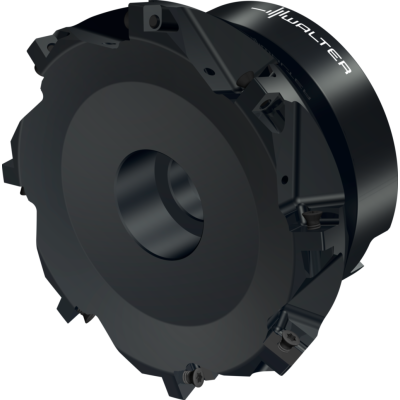

M4002-125-B40-08-02
High-feed milling cutter
EAN-code: 0790160724
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
952,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Cutting edge length
Lc
2 mm
Number of indexable inserts
No. of inserts
8
Maximum radial depth of cut
ar
11,4 mm
Cutting diameter
Dc
102,2 mm
Connection diameter
d1
40
Maximum cutting diameter
Da
125 mm
Lead angle
KAPR
15 °
Functional length
l4
60 mm
Tool designation
Designation
M4002-125-B40-08-02
Maximum ramping angle
RMPX
0,7 °
Maximum speed
RPMX
11300 r/min
Possible indexable inserts
Type
SD .. 1204 ..; SDMX1205ZDR
Weight
WT
2,89 kg
Number of teeth
Z
8
