Walter Tools
M4258-063-C8-02-96-M

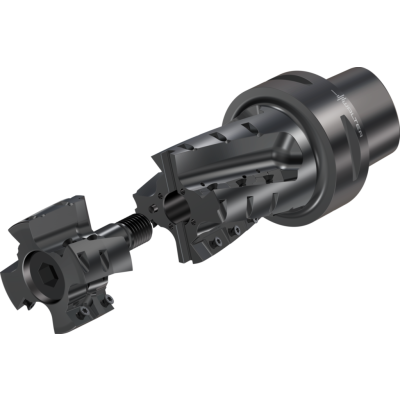

Modulaarinen siilijyrsin
EAN-code: 0915580724
Half effective design with corner front piece
2 or 4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
2793,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

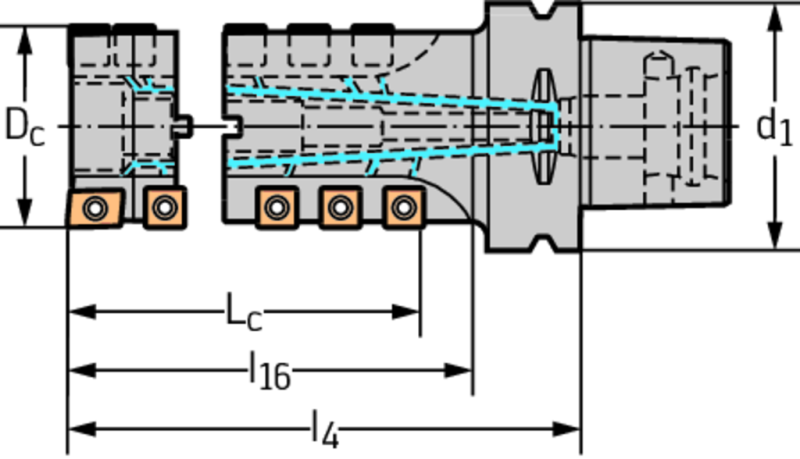

Technical details
Description
Symbol
Value
Cutting edge length
Lc
98 mm
Number of indexable inserts - face
Number of WSP
2 EA
Number of indexable inserts - peripheral
Number of WSP
18 EA
Cutting edge diameter
Dc
63 mm
Connection diameter
d1
80
Usable length
l16
115 mm
Maximum projection length
l4
150 mm
Tool designation
Designation
M4258-063-C8-02-96-M
Possible indexable inserts
Type
LDM . 1704 .. R
Possible indexable inserts
Type
SDM . 120408
Weight
3,41 kg
Number of teeth
Z
2
