Walter Tools

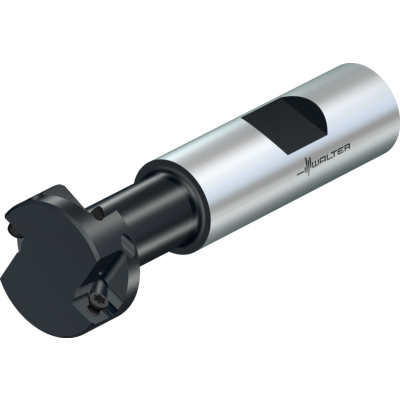

M4575-021-W12-02-09
T-urajyrsin
EAN-code: 0787281724
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
399,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

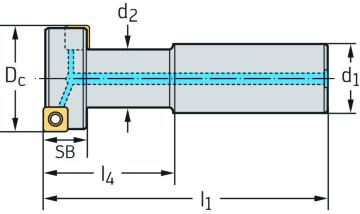

Technical details
Description
Symbol
Value
Number of indexable inserts
Number of WSP
2
Maximum cutting depth
SB
8,75 mm
Cutting edge diameter
Dc
20,5 mm
Connection diameter
d1
12
Body diameter
d2
11 mm
Overall length
l1
73 mm
Maximum projection length
l4
27 mm
Tool designation
Designation
M4575-021-W12-02-09
Possible indexable inserts
Type
SDM . 06T204
Weight
0,05 kg
Number of teeth
Z
2
