Walter Tools
M5130-032-W32-03-15
Kulmajyrsin
EAN-code: 0934387724
2 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
407,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Video
Appendices

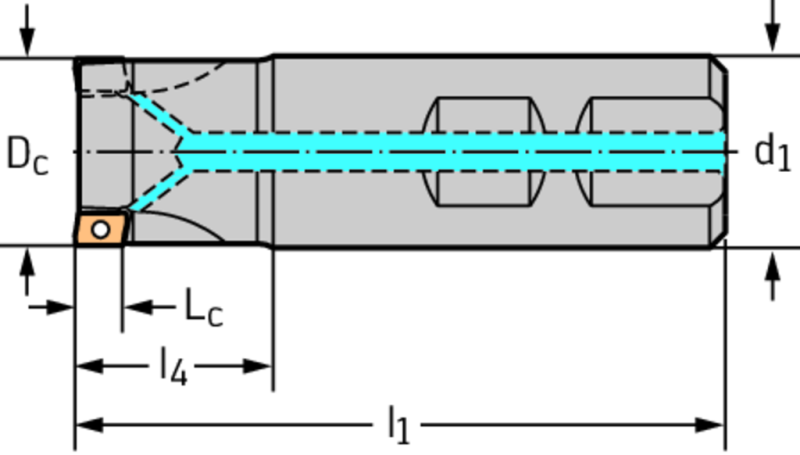

Technical details
Description
Symbol
Value
Cutting edge length
Lc
15 mm
Number of indexable inserts - face
Number of WSP
3 EA
Cutting edge diameter
Dc
32 mm
Connection diameter
d1
32
Overall length
l1
110 mm
Maximum projection length
l4
49 mm
Tool designation
Designation
M5130-032-W32-03-15
Possible indexable inserts
Type
BC .. 1605 .. R
Weight
0,57 kg
Number of teeth
Z
3
