Walter Tools

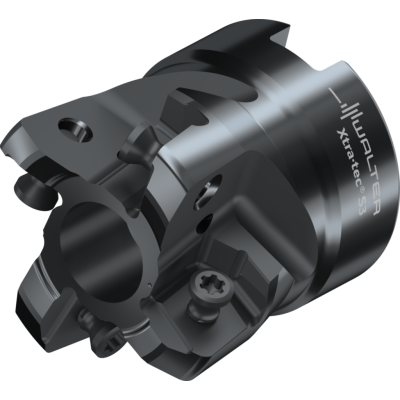

M6420-040-B16-04-02
High-Feed-Fräser
NEW 2026
EAN-code: 4063467930033
4 cutting edges per indexable insert
P
M
K
N
S
H
O
VAT 0%
466,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Cutting edge length
Lc
2 mm
Number of indexable inserts
No. of inserts
4
Maximum radial depth of cut
ar
8 mm
Cutting diameter
Dc
29,6 mm
Connection diameter
d1
16
Maximum cutting diameter
Da
40 mm
Lead angle
KAPR
20 °
Functional length
l4
40 mm
Tool designation
Designation
M6420-040-B16-04-02
Maximum ramping angle
RMPX
1,7 °
Maximum speed
RPMX
14500 r/min
Possible indexable inserts
Type
ENMX110616R
Weight
WT
0,16 kg
Number of teeth
Z
4
