Walter Tools
TC120-M16-L1-WW60AG
HSS-E-PM machine taps
EAN-code: 4042446283155
For long-chipping materials
P
M
K
N
S
H
O
VAT 0%
221,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

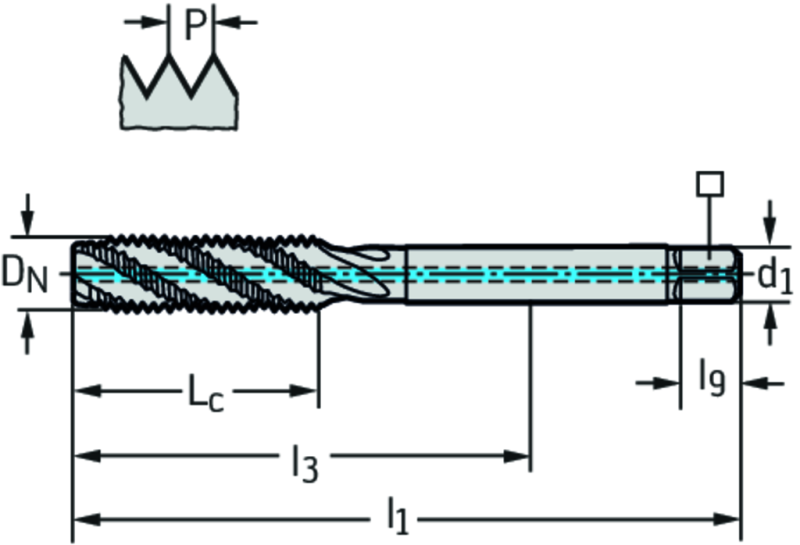

Technical details
Description
Symbol
Value
Connection diameter
d1
12
Functional length
l1
120 mm
Driving square length
l9
12 mm
Usable length
l3
78 mm
Number of grooves
N
4
Tool designation
Designation
TC120-M16-L1-WW60AG
Thread size
DN
M 16
Thread length
Lc
52 mm
Thread pitch
P
2 mm
Clamping width
Range
9 mm
