Walter Tools

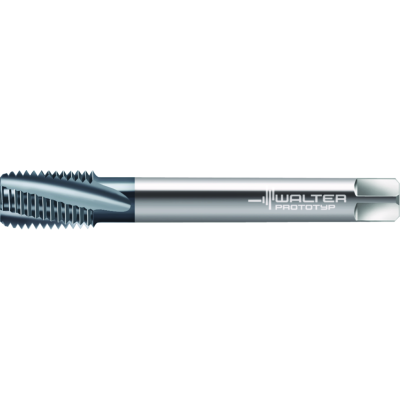

TC180-M12-L1-WJ30EL
Solid carbide machine taps
EAN-code: 4063467542892
For long- and short-chipping materials
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

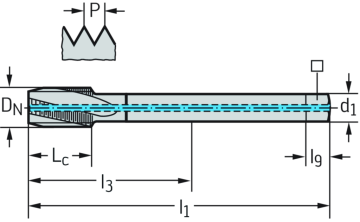

Technical details
Description
Symbol
Value
Connection diameter
d1
9
Functional length
l1
110 mm
Driving square length
l9
10 mm
Usable length
l3
83 mm
Number of grooves
N
4
Tool designation
Designation
TC180-M12-L1-WJ30EL
Premachined hole diameter
PHD
10,25 mm
Tap chamfer length
TCL
4,91 mm
Thread size
DN
M 12
Thread length
Lc
18,5 mm
Thread pitch
P
1,75 mm
Clamping width
7 mm
