Walter Tools
TC280-M6-C3-WJ30EL

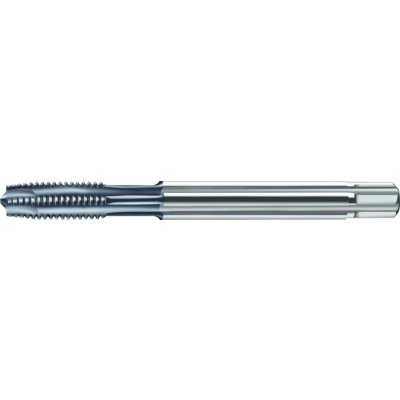

Solid carbide machine taps
EAN-code: 4063467544001
Cooling grooves on the shank
For long-chipping materials
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
6
Functional length
l1
80 mm
Driving square length
l9
8 mm
Usable length
l3
30 mm
Number of grooves
N
3
Tool designation
Designation
TC280-M6-C3-WJ30EL
Premachined hole diameter
PHD
5 mm
Tap chamfer length
TCL
4,8 mm
Thread size
DN
M 6
Thread length
Lc
19 mm
Thread pitch
P
1 mm
Clamping width
4,9 mm
