TC410-M24X2-L6-WY80AD

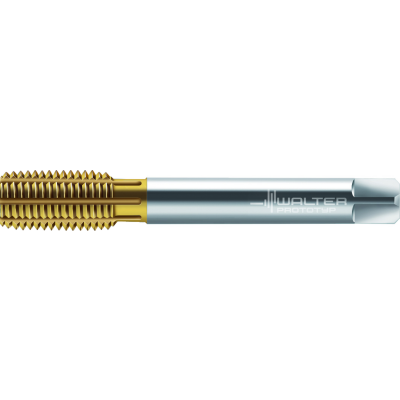

P TR TC420 MF L6 WW60AD P 01 image

Walter Tools TC410-M24X2-L6-WY80AD
HSS-E-manglaava kierretappi

EAN-code: 4042446290313

P-Tr-Blind-Holes-Icon

P-Tr-Through-Holes-Icon

Tr-Profil-MF-DIN-Icon

Tr-3-5xDN-Icon-inch

TR-350-60HB-Icon-inch

Tr-1200-200-Nmm2-Icon

Tr-Anschnitt-C-2-3-Icon

For long-chipping materials

P

M

K

N

S

H

O

VAT 0% 325,00 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Ask about this product

Technical details

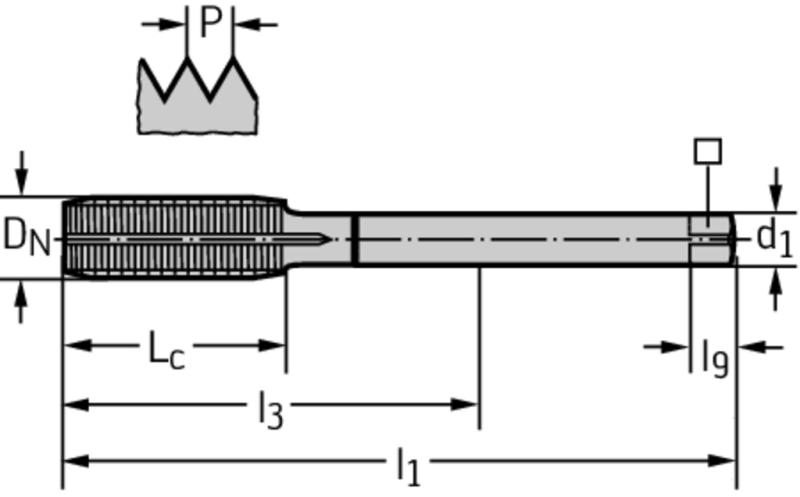

P TR PDYN DP2166705 ZUE D 01

Description Symbol Value

Connection diameter

d₁

18

Functional length

l₁

140 mm

Driving square length

l₉

17 mm

Usable length

l₃

93 mm

Number of grooves

N

8

Tool designation

Designation

TC410-M24X2-L6-WY80AD

Thread size

D_N

MF 24x2

Thread length

L_c

26 mm

Thread pitch

P

2 mm

Clamping width

Range

14,5 mm

Compatible products

Adaptors

Products

W A A331 P 01

A331.0

Kierretapin pikavaihtopidin

W-A-C340-P-01

C340-ER40

ER-holkki kierteitykseen, DIN 6499

W A 391 14 CAPTO P 01

391.14-CAPTO

ER-holkki-istukka, ISO 26623-1 (Capto)

W A AB035 S40 ER20 120 P 01

AB035-S

Kierteitysistukka – synkronoitu, DIN 69871 (SK) AD

W A AB035 J40 ER20 110 P 01

AB035-J

Kierteitysistukka – synkronoitu, JIS B 6339 (MAS-BT) AD

W A AB035 H63 ER20 108 P 01

AB035-H

Kierteitysistukka – synkronoitu, DIN 69893 (HSK-A)

W A AB035 C6 ER20 105 P 01

AB035-C

Kierteitysistukka – synkronoitu, ISO 26623-1 (Capto)

Z-SEALING-WH-P-01

Z_SEALING

Tiiviste
