Products Cutting Tools Threading Thread Mills Solid Carbide Thread Milling Cutters M-Thread Thread Mills With Internal Cooling 2,5xD TC620-M-W5E DeVibe TC620-M16-W5E-WB10TJ

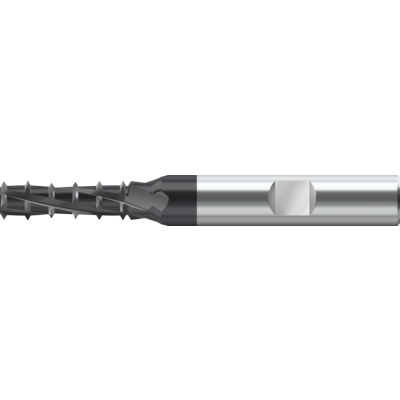

Walter Tools TC620-M16-W5E-WB10TJ
Täyskovametalli-kierrejyrsin 60° – M, MF

NEW 2022
EAN-code: 4042446322120
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-M-MF-DIN-Icon
DeVibe-Icon M-48HRC-Icon Recon-Icon Tr-2-5xDN-Icon-inch Tr-2-5xDN-Icon
Universal multiple-row thread milling cutters For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0% 501,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W TR TC620E W D 01
Enlarge
Description Symbol Value
Maximum cutting depth
Lc
42 mm
Cutting edge diameter
Dc
13,1 mm
Connection diameter
d1
16
Thread size
DN
M 16
Overall length
l1
106 mm
Maximum overhang
l4
58 mm
Tool designation
Designation
TC620-M16-W5E-WB10TJ
Functional length
l21
6 mm
Thread pitch
P
2 mm
Number of teeth
Z
5
Compatible products
Adaptors
AB016-J-P-01
AB016-J
Hydraulinen kiinnitysistukka, JIS B 6339 (MAS-BT) AD/B
Show variations
AB016-S-P-01
AB016-S
Hydraulinen kiinnitysistukka, DIN 69871 (SK) AD/B
Show variations
AB016-C-P-01
AB016-C
Hydraulinen kiinnitysistukka, ISO 26623-1 (Capto)
Show variations
AB016-H-P-01
AB016-H
Hydraulinen kiinnitysistukka, DIN 69893 (HSK-A)
Show variations
AB017-J-P-01
AB017-J
Hydraulinen kiinnitysistukka, JIS B 6339 (MAS-BT) AD/B
Show variations
AB017-S-P-01
AB017-S
Hydraulinen kiinnitysistukka, DIN 69871 (SK) AD/B
Show variations
AB044-H-P-01
AB044-H
Weldon-kiinnitysistukka, DIN 69893 (HSK-A)
Show variations
AB017-H-P-01
AB017-H
Hydraulinen kiinnitysistukka, DIN 69893 (HSK-A)
Show variations
AB044-J-P-01
AB044-J
Weldon-kiinnitysistukka, JIS B 6339 (MAS-BT) AD/B
Show variations
AB044-S-P-01
AB044-S
Weldon-kiinnitysistukka, DIN 69871 (SK) AD/B
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Lieriöholkki – tiivistetty
Show variations
AB019-HSK-MV-AD
AB019-H
Hydraulinen kiinnitysistukka, DIN 69893 (HSK-A)
Show variations
W A A170M NCT P 01
A170M.0
Weldon-kiinnitysistukka, NCT AD
Show variations
W A AK182 SK P 01
AK182-SK
Hydraulinen kiinnitysistukka, DIN 69871 (SK) AD/B
Show variations
W A AK182 HSK P 01
AK182-HSK
Hydraulinen kiinnitysistukka, DIN 69893 (HSK-A)
Show variations
W A AK182 CAPTO P 01
AK182-C
Hydraulinen kiinnitysistukka, ISO 26623-1 (Capto)
Show variations
W A AK182 BT P 01
AK182-BT
Hydraulinen kiinnitysistukka, JIS B 6339 (MAS-BT) AD/B
Show variations
