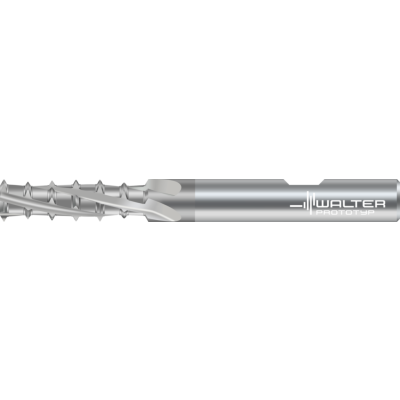

TC620-MJ5-W1E-WB10RA
Multiple-row thread milling cutters
EAN-code: 4063467581013
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting depth
Lc
12,8 mm
Cutting diameter
Dc
3,9 mm
Connection diameter
d1
6
Thread size
DN
MJ 5
Overall length
l1
65 mm
Maximum overhang
l4
29 mm
Tool designation
Designation
TC620-MJ5-W1E-WB10RA
Functional length
l21
2,4 mm
Thread pitch
P
0,8 mm
Number of teeth
Z
3
