Walter Tools
TC620-UNC8-WVD-WB10TJ

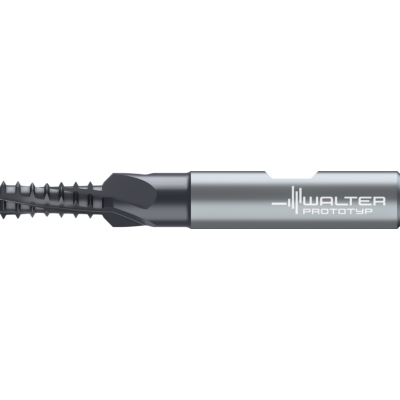

Multiple-row thread milling cutters
NEW 2025
EAN-code: 4063466501739
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
VAT 0%
222,00 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Maximum cutting depth
Lc
8,7 mm
Body diameter
d2
4,8 mm
Cutting edge diameter
Dc
3,1 mm
Connection diameter
d1
6
Thread size
DN
UNC #8-32
Usable length
l3
16,4 mm
Overall length
l1
57 mm
Maximum overhang
l4
21 mm
Tool designation
Designation
TC620-UNC8-WVD-WB10TJ
Functional length
l21
1,59 mm
Thread pitch
Gear per inch
32
Number of teeth
Z
3
