Walter Tools

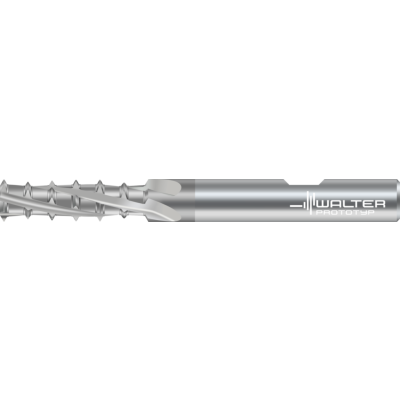

TC620-UNJC1/2-W1E-WB10RA
Multiple-row thread milling cutters
EAN-code: 4063467581181
Universal multiple-row thread milling cutters
For high cutting speeds and high feeds per tooth
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

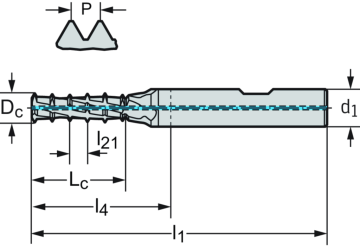

Technical details
Description
Symbol
Value
Maximum cutting depth
Lc
31,3 mm
Cutting diameter
Dc
10,1 mm
Connection diameter
d1
12
Thread size
DN
UNJC 1/2-13
Overall length
l1
92 mm
Maximum overhang
l4
47 mm
Tool designation
Designation
TC620-UNJC1/2-W1E-WB10RA
Functional length
l21
5,86 mm
Thread pitch
Threads per inch
13
Number of teeth
Z
4
