Walter Tools

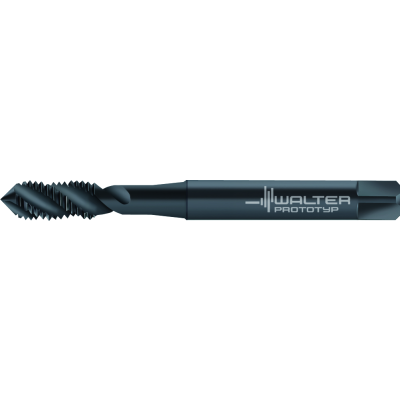

TD117-EGM5-C0-WY80FC
HSS-E machine taps
EAN-code: 4063466143052
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
6
Functional length
l1
80 mm
Driving square length
l9
8 mm
Usable length
l3
30 mm
Number of grooves
N
3
Tool designation
Designation
TD117-EGM5-C0-WY80FC
Premachined hole diameter
PHD
5,25 mm
Tap chamfer length
TCL
2,24 mm
Thread size
DN
EGM 5
Thread length
Lc
10 mm
Thread pitch
P
0,8 mm
Clamping width
4,9 mm
