Walter Tools

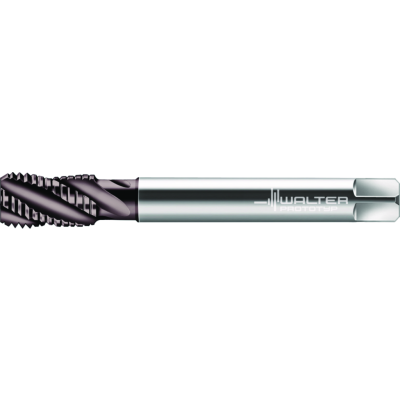

TD117-G1/2-N0-WY80RG
HSS-E machine taps
EAN-code: 4063466143496
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
16
Functional length
l1
125 mm
Driving square length
l9
15 mm
Number of grooves
N
4
Usable length
l3
80 mm
Tool designation
Designation
TD117-G1/2-N0-WY80RG
Premachined hole diameter
PHD
19 mm
Tap chamfer length
TCL
5,08 mm
Thread size
DN
20,955
Thread size
DN-P
G 1/2-14
Thread length
Lc
18 mm
Threads per inch
P
14
Clamping width
12 mm
