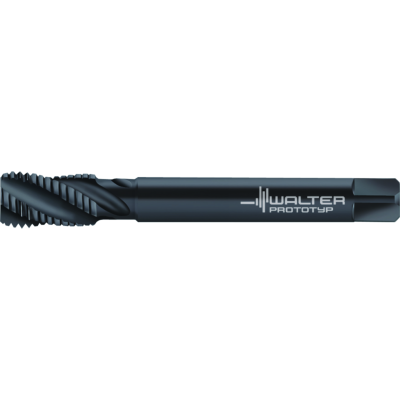

Walter Tools
TD117-UN1.5/8-L0-WY80FC
HSS-E machine taps
EAN-code: 4063466142437
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
32
Functional length
l1
200 mm
Driving square length
l9
27 mm
Usable length
l3
102 mm
Number of grooves
N
6
Tool designation
Designation
TD117-UN1.5/8-L0-WY80FC
Premachined hole diameter
PHD
38,1 mm
Tap chamfer length
TCL
8,89 mm
Thread size
DN
41,275
Thread size
DN-P
UN 1.5/8-8
Thread length
Lc
33 mm
Clamping width
24 mm
