Walter Tools
TD117-UN2-L0-WY80FC

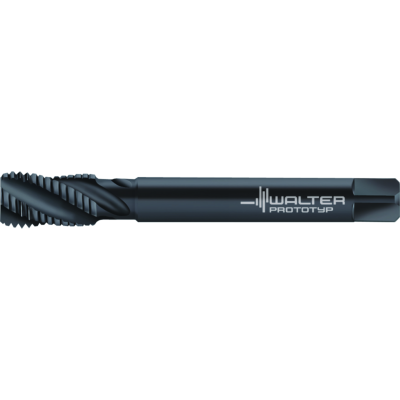

HSS-E machine taps
EAN-code: 4063466142468
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

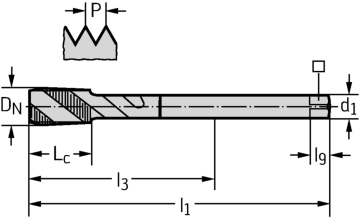

Technical details
Description
Symbol
Value
Connection diameter
d1
40
Functional length
l1
225 mm
Driving square length
l9
35 mm
Usable length
l3
95 mm
Number of grooves
N
6
Tool designation
Designation
TD117-UN2-L0-WY80FC
Premachined hole diameter
PHD
48 mm
Tap chamfer length
TCL
8,89 mm
Thread size
DN
50,8
Thread size
DN-P
UN 2"-8
Thread length
Lc
36 mm
Clamping width
32 mm
