Walter Tools
TD117-UNC5-C0-WY80FC

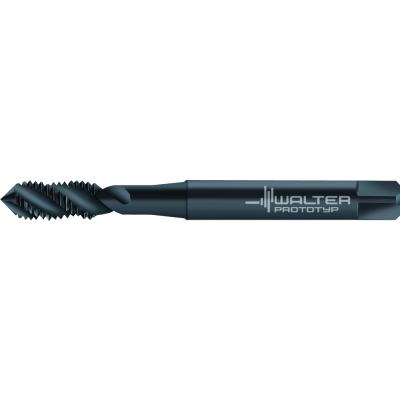

HSS-E machine taps
EAN-code: 4063466142130
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

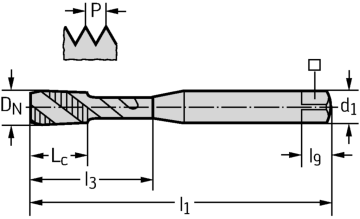

Technical details
Description
Symbol
Value
Connection diameter
d1
3,5
Functional length
l1
56 mm
Driving square length
l9
6 mm
Usable length
l3
18 mm
Number of grooves
N
3
Tool designation
Designation
TD117-UNC5-C0-WY80FC
Premachined hole diameter
PHD
2,65 mm
Tap chamfer length
TCL
1,43 mm
Thread size
DN
3,175
Thread size
DN-P
UNC #5-40
Thread length
Lc
6 mm
Clamping width
2,7 mm
