Walter Tools

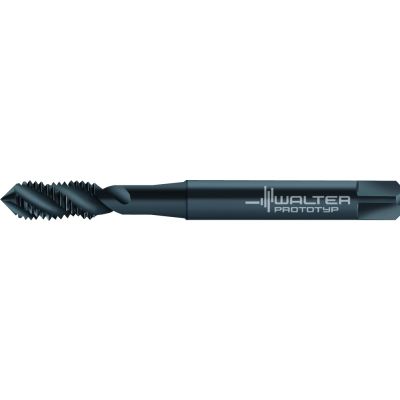

TD117-UNF6-C0-WY80FC
HSS-E machine taps
EAN-code: 4063466142598
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product

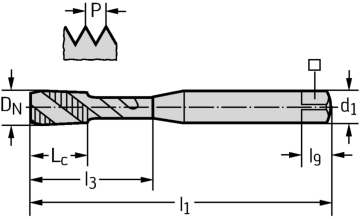

Technical details
Description
Symbol
Value
Connection diameter
d1
4
Functional length
l1
56 mm
Driving square length
l9
6 mm
Usable length
l3
20 mm
Number of grooves
N
3
Tool designation
Designation
TD117-UNF6-C0-WY80FC
Premachined hole diameter
PHD
2,95 mm
Tap chamfer length
TCL
1,43 mm
Thread size
DN
3,505
Thread size
DN-P
UNF #6-40
Thread length
Lc
6,5 mm
Clamping width
3 mm
