Walter Tools
TD217-EGM16-L0-WY80FC

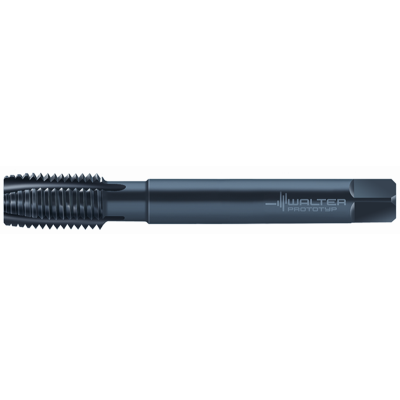

HSS-E machine taps
EAN-code: 4063466208072
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
14
Functional length
l1
125 mm
Driving square length
l9
14 mm
Usable length
l3
81 mm
Number of grooves
N
4
Tool designation
Designation
TD217-EGM16-L0-WY80FC
Premachined hole diameter
PHD
16,5 mm
Tap chamfer length
TCL
9 mm
Thread size
DN-P
EGM 16
Thread length
Lc
30 mm
Thread pitch
P
2 mm
Clamping width
11 mm
