Walter Tools

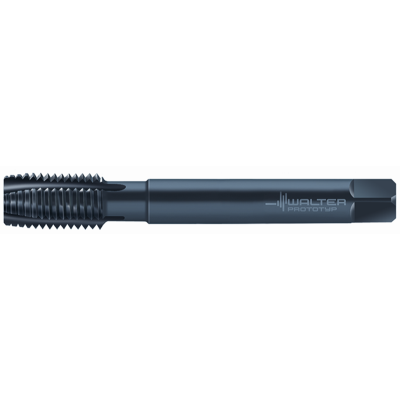

TD217-G3/8-N0-WY80FC
HSS-E machine taps
EAN-code: 4063466212383
Universal taps
P
M
K
N
S
H
O
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Connection diameter
d1
12
Functional length
l1
100 mm
Driving square length
l9
12 mm
Number of grooves
N
4
Usable length
l3
58 mm
Tool designation
Designation
TD217-G3/8-N0-WY80FC
Premachined hole diameter
PHD
15,25 mm
Tap chamfer length
TCL
6,02 mm
Thread size
DN
16,662
Thread size
DN-P
G 3/8-19
Thread length
Lc
21 mm
Threads per inch
19
Clamping width
9 mm
